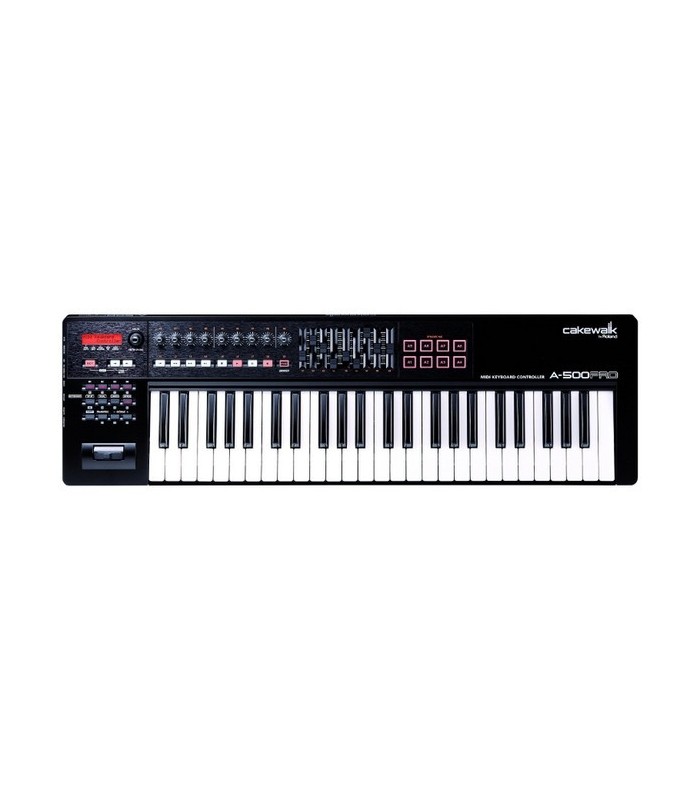

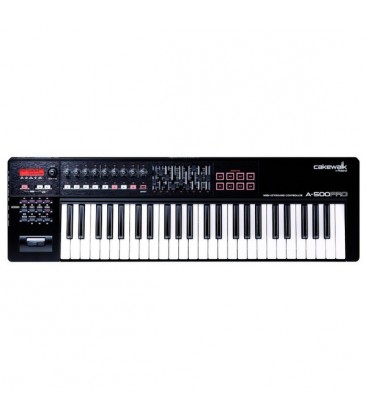

ROLAND TECLADO CONTROLADOR A-500PRO
Keyboard 49 keys (with velocity and channel aftertouch)
Controllers Pads: [A1][A8]
Buttons: [B1][B4], [L1][L9]
Knobs: [R1][R9]
Sliders: [S1][S9]
Foot Pedals: HOLD (P1), EXPRESSION (P2)
Bender Lever: BENDER, MODULATION
Keyboard: AFTERTOUCH
[VALUE] knob
Buttons [ACT] button, [ < ] button, [ > ] button, [DUAL] button, [SPLIT] button, [UPPER] button, [LOWER] button, [SHIFT] button, [TRANSPOSE] button, OCTAVE [] [+] button
Display 16 characters, 2 line
Controllers Pads: [A1][A8]
Buttons: [B1][B4], [L1][L9]
Knobs: [R1][R9]
Sliders: [S1][S9]
Foot Pedals: HOLD (P1), EXPRESSION (P2)
Bender Lever: BENDER, MODULATION
Keyboard: AFTERTOUCH
[VALUE] knob
Buttons [ACT] button, [ < ] button, [ > ] button, [DUAL] button, [SPLIT] button, [UPPER] button, [LOWER] button, [SHIFT] button, [TRANSPOSE] button, OCTAVE [] [+] button
Display 16 characters, 2 line
Keyboard 49 keys (with velocity and channel aftertouch)
Controllers Pads: [A1][A8]
Buttons: [B1][B4], [L1][L9]
Knobs: [R1][R9]
Sliders: [S1][S9]
Foot Pedals: HOLD (P1), EXPRESSION (P2)
Bender Lever: BENDER, MODULATION
Keyboard: AFTERTOUCH
[VALUE] knob
Buttons [ACT] button, [ < ] button, [ > ] button, [DUAL] button, [SPLIT] button, [UPPER] button, [LOWER] button, [SHIFT] button, [TRANSPOSE] button, OCTAVE [] [+] button
Display 16 characters, 2 lines LCD (with backlit)
Side Panel [POWER] Switch (USB/OFF/DC IN), [MIDI MERGE] Switch (ON/OFF)
Connectors HOLD (P1) Pedal Jack: 1/4 inch phone type
EXPRESSION (P2) Pedal Jack: 1/4 inch TRS phone type
MIDI Connectors (IN, OUT), USB Connector
DC IN Jack
Power Supply DC 9 V (AC Adaptor) or USB Bus Power
Current Draw 300 mA (AC Adaptor or USB Bus Power)
Accessories A-PRO CD-ROM, Cakewalk Production Plus Pack DVD-ROM, USB Cable, Owners Manual, Cakewalk Production Plus Pack installation guide, License agreement
Options Pedal Switch: DP-2/DP-10, Expression Pedal: EV-5/EV-7, AC Adaptor (PSB series)
Size and Weight
Width 839 mm 33-1/16 inches
Depth 251 mm 9-7/8 inches
Height 91 mm 3-5/8 inches
Weight 3.8 kg 8 lbs. 7 oz.
Controllers Pads: [A1][A8]
Buttons: [B1][B4], [L1][L9]
Knobs: [R1][R9]
Sliders: [S1][S9]
Foot Pedals: HOLD (P1), EXPRESSION (P2)
Bender Lever: BENDER, MODULATION
Keyboard: AFTERTOUCH
[VALUE] knob
Buttons [ACT] button, [ < ] button, [ > ] button, [DUAL] button, [SPLIT] button, [UPPER] button, [LOWER] button, [SHIFT] button, [TRANSPOSE] button, OCTAVE [] [+] button
Display 16 characters, 2 lines LCD (with backlit)
Side Panel [POWER] Switch (USB/OFF/DC IN), [MIDI MERGE] Switch (ON/OFF)
Connectors HOLD (P1) Pedal Jack: 1/4 inch phone type
EXPRESSION (P2) Pedal Jack: 1/4 inch TRS phone type
MIDI Connectors (IN, OUT), USB Connector
DC IN Jack
Power Supply DC 9 V (AC Adaptor) or USB Bus Power
Current Draw 300 mA (AC Adaptor or USB Bus Power)
Accessories A-PRO CD-ROM, Cakewalk Production Plus Pack DVD-ROM, USB Cable, Owners Manual, Cakewalk Production Plus Pack installation guide, License agreement
Options Pedal Switch: DP-2/DP-10, Expression Pedal: EV-5/EV-7, AC Adaptor (PSB series)
Size and Weight
Width 839 mm 33-1/16 inches
Depth 251 mm 9-7/8 inches
Height 91 mm 3-5/8 inches
Weight 3.8 kg 8 lbs. 7 oz.
